2.86 inch Bar Type TFT Display with 376*960 Pixels Luminance 200nits LCD Display with IPS Panel

Product Description

Introducing the New Model M90-28602-001, a 2.86-inch TFT LCD display. This compact display boasts high resolution, excellent viewing angles, and a high contrast ratio, making it ideal for various specialized applications, including those requiring a bar-type LCD screen.

Key Features

• Size and Resolution: The display measures 2.86 inches diagonally and offers a high resolution of 376x960 pixels, delivering sharp and clear images.

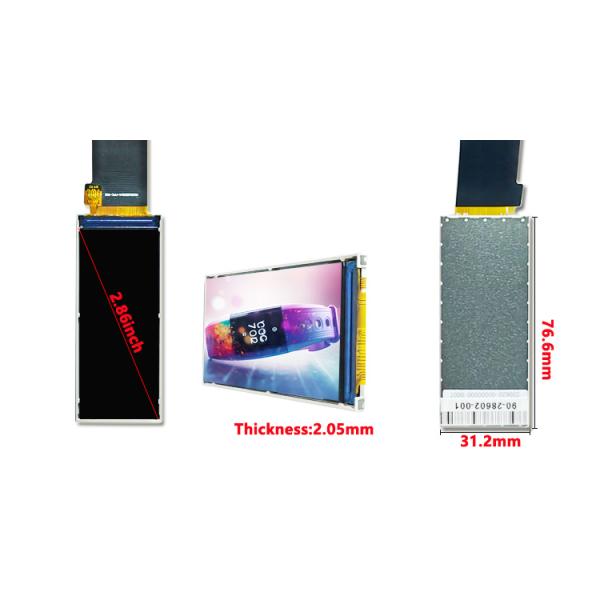

• Active Area and Dimensions: Features an active area of 26.51x67.68 mm and an overall outline dimension of 31.2x76.6x2.05 mm, making it suitable for applications where space is constrained.
• Viewing Angles: Provides wide viewing angles of 85°/85°/85°/85° (right, left, up, down), ensuring consistent image quality from all directions.
• Brightness: The display offers a brightness of 200 cd/m², making it suitable for indoor use and environments with moderate lighting.
• LED Lifetime: The backlight has a lifespan of 30,000 hours, ensuring long-term durability and reliability.
• Contrast Ratio: With a high contrast ratio of 1500:1, the display delivers deep blacks and vibrant colors, enhancing visual clarity.
• Interface: Utilizes an RGB 40 interface, which is compatible with a wide range of systems and easy to integrate.
• Temperature Range: Can operate in temperatures ranging from -20℃ to 70℃ and can be stored in temperatures from -30℃ to 80℃, ensuring reliability in various environmental conditions.
• Touchscreen: This model does not include touch functionality, focusing on providing a high-quality display for visual applications.

Applications

• Industrial Equipment: Ideal for control panels and status displays in industrial machines where a narrow, bar-type display is advantageous.
• Automotive Displays: Suitable for automotive dashboard displays, rearview mirror displays, and infotainment systems that require a compact and high-resolution screen.
• Medical Devices: Perfect for integration into portable medical devices and diagnostic equipment that need a small, clear display.
• Consumer Electronics: Can be used in smart home devices, remote controls, and other compact consumer electronics.
• Wearable Technology: Suitable for smartwatches and fitness trackers that require a slim, bar-type display.
• Point of Sale Systems: Useful in POS systems and handheld transaction devices where space is limited but display quality is crucial.
• Custom Applications: Perfect for custom-designed devices and IoT applications requiring a specialized display form factor, such as bar-type LCD screens.

The M90-28602-001 is a versatile and high-quality 2.86-inch TFT LCD display, designed to meet the demanding requirements of various industrial, automotive, medical, and consumer applications
