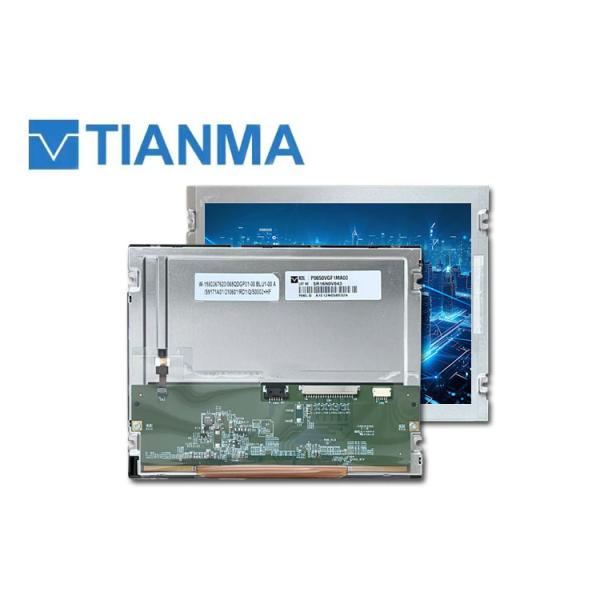

TIANMA 6.5 inch LCD Panel with 640*480 Resolution 100K LED Lifetime for Auotomotive Application
Product Information:
| Brand | TIANMA |
| Model P/N | P0650VGF1MA00 |
| Diagonal Size | 6.5" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480, VGA 122PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 132.48(W)×99.36(H) mm |
| Bezel Opening | 135.5(W)×102.4(H) mm |
| Outline(mm) | 154 × 121 × 11 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 1200 cd/m² (Typ.) |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | SFT, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 97% sRGB |
| Backlight | 6S2P WLED , 100K hours , No Driver |
| Mass | 179g (Typ.) |
| Used for | Laptop; Industrial; AUO |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 80 °C |
Features:
One of the standout features of this product is its high brightness LCD technology, which delivers exceptional image clarity and contrast. With a luminance of 1200 nits, this display panel is ideal for use in bright environments and outdoor applications where visibility is critical.
Finally, the TIANMA Display Panel offers excellent viewing angles, with an RLUD viewing angle of 88/88/88/88 degrees. This means that it can be viewed from multiple angles without any loss of image quality or clarity.
One of the key features of this product is its storage temperature range of -40 ~ 90 °C, which ensures that it can withstand extreme temperatures and harsh environments. This makes it ideal for use in outdoor settings, industrial applications, and other demanding environments where reliability is paramount.
Another important attribute of this display panel is its size of 6.5 inches, which offers an optimal viewing experience for users. This size is perfect for a variety of applications, including medical devices, automotive displays, and industrial control systems.
In addition to its size and durability, the TIANMA Display Panel is also designed to operate in a wide range of temperatures, with an operating temperature range of -30℃～80℃. This means that it can be used in a variety of environments and conditions, making it a versatile and reliable solution for your display needs.
In conclusion, if you are looking for a high-quality and reliable display panel for your application, the TIANMA Display Panel is an excellent choice. With its durable design, optimal size, versatile temperature range, high brightness LCD technology, and exceptional viewing angles, this display panel is sure to meet all of your display needs and exceed your expectations.
Applications:
- Vehicle LCD display: The TIANMA P0650VGF1MA00 is ideal for use in automotive and other transportation-related applications. Its high contrast ratio of 900 and luminance of 1200 nits make it easy to read in bright sunlight, while its IPS viewing direction ensures clear visibility from any angle.
- Industrial TFT display: With its rugged construction and certifications such as IEC 62341 and JEITA CP-3451, the TIANMA P0650VGF1MA00 is well-suited for use in industrial environments where durability and reliability are essential. Its active area of 132.48×99.36 and 6.5-inch size make it a versatile option for a range of industrial applications.
In addition to its versatile applications, the TIANMA P0650VGF1MA00 boasts a range of certifications that make it a safe and reliable choice for your project. These certifications include ISO 9241, ANSI/AAMI ES60601-1-2, and IEC 60068. Whether you are designing a medical device or a piece of industrial equipment, you can trust the TIANMA P0650VGF1MA00 to meet the highest standards of safety and performance.
Support and Services:
Our technical support and services for the TIANMA Display Panel product include:
- Expert technical guidance for product installation and setup
- Assistance with troubleshooting and problem resolution
- Access to product documentation and user manuals
- Repair and replacement services for defective or damaged products
- Regular software updates and firmware upgrades
- Product training and education for customers and partners
Packing and Shipping:
Product Packaging:
- Individual TIANMA Display Panel packaged in an anti-static bag
- Multiple display panels packaged in a foam-lined box for added protection during shipping and handling
Shipping:
- Ships from our warehouse within 1-2 business days of order placement
- Standard shipping via FedEx; UPS; DHL
- Expedited shipping options available for an additional fee
- International shipping available with additional fees and longer delivery times
